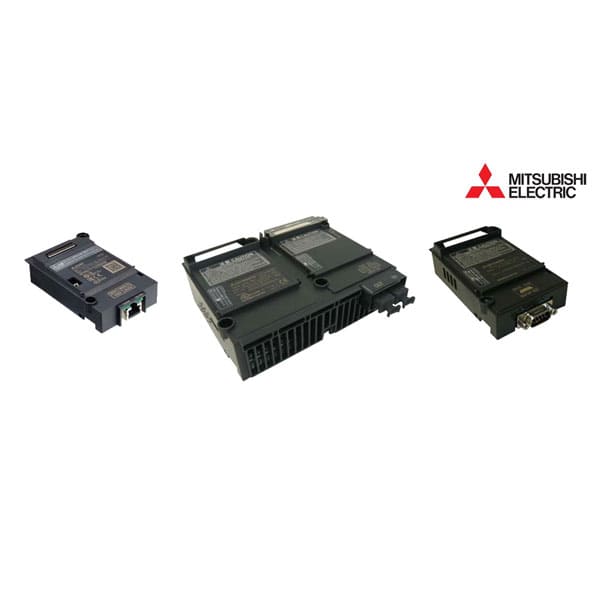

Module truyền thông cho màn hình cảm ứng GOT2000 Mitsubishi
| GOT2000 communication units | |||||||
| Product name | Model | Specifications | Supported model | ||||
| GT27 | GT25 | GT23 | GT21 | ||||
| Supported model | GT25-J71E71-100 | Data transfer method: 100BASE-TX, 10BASE-T Compatible software: GT Works3 Ver.1.160S or later | ● | ● | — | — | |
| Serial communication unit | GT15-RS2-9P | RS-232 serial communication unit (D-sub 9-pin male) | ● | ● | — | — | |
| GT15-RS4-9S | RS-422/485 serial communication unit (D-sub 9-pin female) ]1 ]2 | ● | ● | — | — | ||
| GT15-RS4-TE | RS-422/485 serial communication unit (terminal block) ]1 Can be used only when connected with temperature controllers/indicating controllers by RS-485 connection or at the GOT multi-drop connection | ● | ● | — | — | ||
| Q bus connection unit | GT15-QBUS | Q bus connection (1 channel) unit standard model | ● | ● | — | — | |
| GT15-QBUS2 | Q bus connection (2 channels) unit standard model | ● | ● | — | — | ||
| GT15-75QBUSL | Q bus connection (1 channel) unit slim model ]3 | ● | ● | — | — | ||
| GT15-75QBUS2L | Q bus connection (2 channels) unit slim model ]3 | ● | ● | — | — | ||
| MELSECNET/H communication unit | GT15-J71LP23-25 | Normal station unit (optical loop) | ● | ● | — | — | |
| GT15-J71BR13 | Normal station unit (coaxial bus) | ● | ● | — | — | ||
| CC-Link IE Controller Network communication unit | GT15-J71GP23-SX | Normal station unit (optical loop) | ● | ● | — | — | |
| CC-Link IE Field Network communication unit | GT15-J71GF13-T2 | Intelligent device station unit | ● | ● | — | — | |
| CC-Link communication unit | GT15-J61BT13 | Intelligent device station unit CC-Link Ver. 2 compliant | ● | ● | — | — | |
| Field network adapter unit | GT25-FNADP | Supported network: PROFIBUS DP, DeviceNet ]4 | ● | ● | — | — | |
| Wireless LAN communication unit ]5 | GT25-WLAN | IEEE802.11b/g/n compliant, built-in antenna, wireless LAN access point (base station) ]6, station (client), connection to personal computer, tablet, smartphone Compliance with: Japan Radio Law ]7, FCC ]8, R&TTE ]8, SRRC ]9, KC ]9 | ● | ● | — | — | |
| Serial multi-drop connection unit | GT01-RS4-M | For GOT multi-drop connection | ● | ● | ● | ● | |
| Supported network | Communication module product name | Communication module article number |
| PROFIBUS DP | ABCC-M40-DPV1 | AB6910-B, AB6910-C |
| DeviceNet | ABCC-M40-DEV | AB6909-B, AB6909-C |
